MANTRA MIS100V2 Single IRIS Sensor | Scanner USB AADHAR | AYUSHMAND Bharat Biometric Device
₹2,750.00
10000 in stock
10000 in stock
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From $40
-
Warranty 1 year
-
Free 30-Day returns
Specification
Overview
| Weight | 0.6 kg |
|---|
Processor
| Weight | 0.6 kg |
|---|
Display
| Weight | 0.6 kg |
|---|
RAM
| Weight | 0.6 kg |
|---|
Storage
| Weight | 0.6 kg |
|---|
Video Card
| Weight | 0.6 kg |
|---|
Connectivity
| Weight | 0.6 kg |
|---|
Features
| Weight | 0.6 kg |
|---|
Battery
| Weight | 0.6 kg |
|---|
General
| Weight | 0.6 kg |
|---|
Description

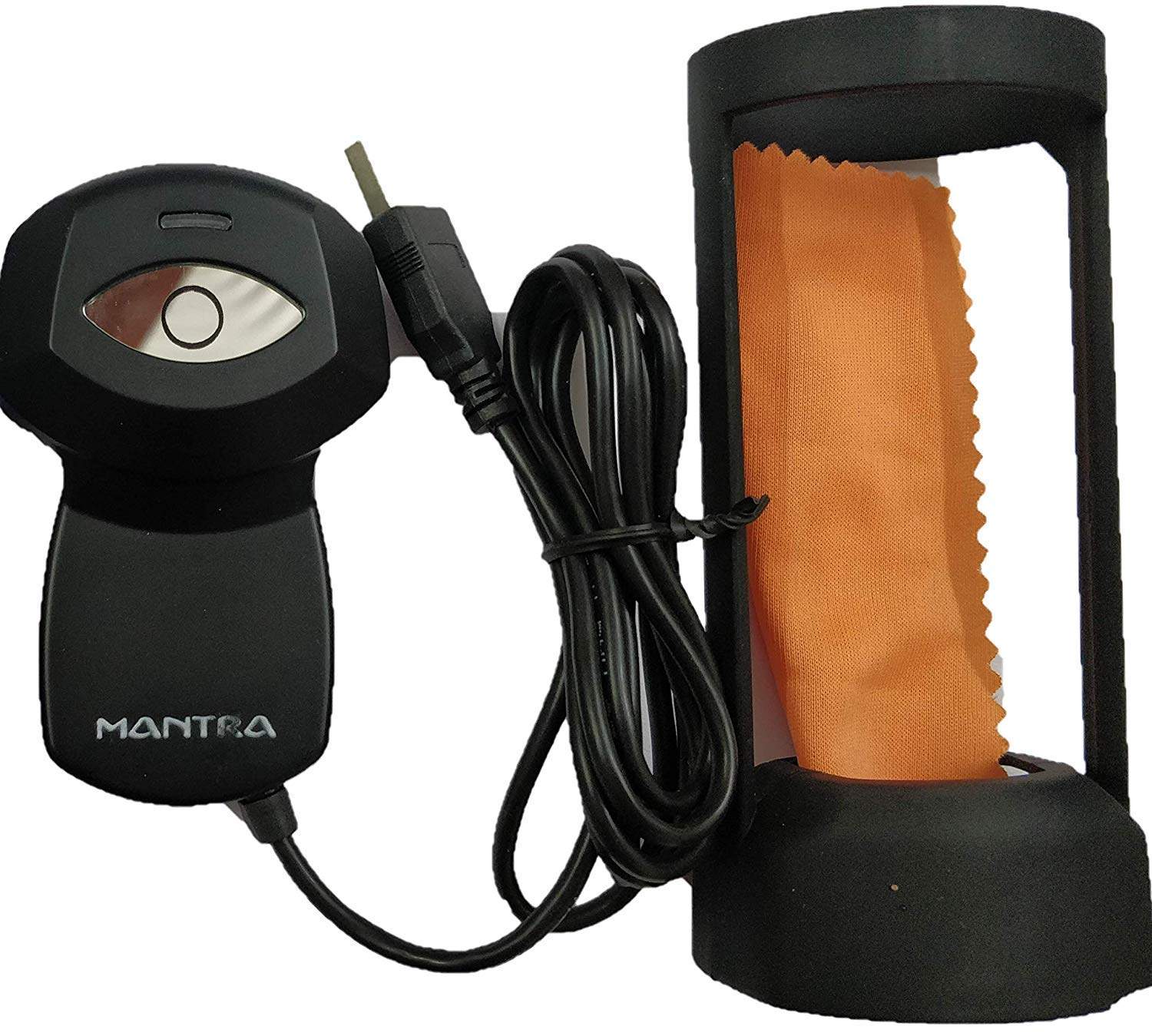

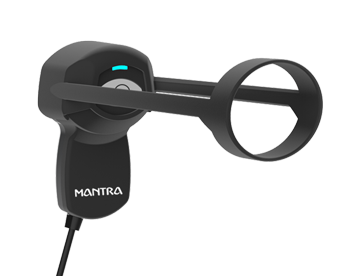

MANTRA MIS100V2 Single IRIS Sensor | Scanner USB AADHAR | AYUSHMAND Bharat Biometric Device
Mantra Iris Scanner – Single USB MIS 100 V2 Biometric Device – Biometric Devices – Mantra
Single Eye Iris scanner Biometric device – Mantra MIS 100v2
For Ayushman Bharat Yojna, UIDAI Authentication and AB-NHPM Empanelled Hospitals
Best IRIS (Eye) Scanner of its class for Ayushman Bharat Yojna and its Hospitals.
- Lowest FAR and FRR
- Supports Windows, Linux, and Android Operating System
- Plug and Play USB 2.0 high-speed interface
- STQC Certified Product

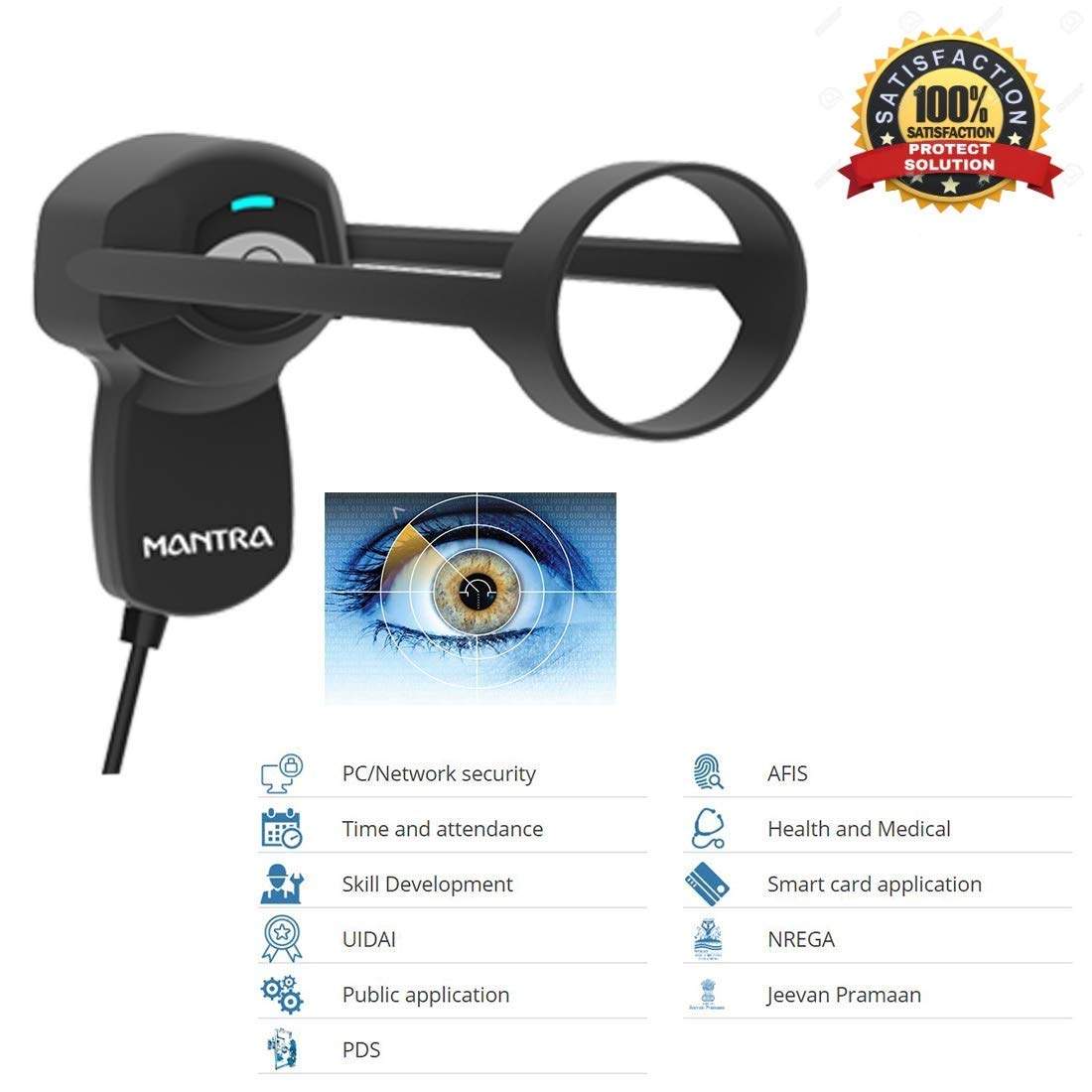

Applications
PC Computers / Network Security, AFIS, AEBAS, Time and attendance, Health and Medical, Skill Development, Smart card application, UIDAI, NREGA, Public applications, Jeevan Praman and PDS. or Ayushman Bharat, Aadhaar, CSC, DSC STQC Certified Product Applications PC Computers / Network Security, AFIS, AEBAS, Time and attendance, Health and Medical, Skill Development, Smart card application, UIDAI, NREGA, Public applications, Jeevan Praman and PDS.
Specifications
| Product Detail | |
|---|---|
| Spatial Resolution | 50% 1.0 LP/mm |
| Pixel Resolution | > 10 pixels/mm |
| Image Margins Left & right | >=0.6x iris radius |
| Top & bottom | >=0.2x iris radius |
| Imaging Wavelength | 700-900 nm |
| Pixel Depth | 8 bits/pixel |
| Output Image | KIND1 to KIND7 with JPEG2000 compression |
| Capture Mode | Auto capture with built-in quality check |
| Capture time | < 2 Sec |
| Safety Exempt Group | Per IEC 62471:2006-07 |
| ESD Air | Discharge+-8 KV, contact type+-4Kv |
| Radiated Emission | FCC part15B/IEC:CISPR 22 CLASS B standard |
| Radiated Immunity | As per IEC/EN 61000-4 3:2006+A2:2010 |
| Health-Safety | RoHS Compliant |
